- Usage: Home DIY
- Model Number: Hydraulic Pliers
- is_customized: Yes
- Type: Hydraulic Crimping Tools
- Brand Name: TEMPS DETIR
- Origin: Mainland China
- Certification: CE
- Mold Size: 4-70mm²
- Pressure: 8T
- Weight: 2.8kg
- Crimp Form: Hexagon Confining Pressure
- Itinerary: 10mm
- length: 310mm
- Mold configuration: 4/6/10/16/25/35/50/70mm²
Package Included:
1 X Plier
8 X Pairs Of Molds
Item Specifics:
Name: Yqk-70 Fast Hydraulic Clamp
Most Under Pressure: 8T
Max Stroke: 10mm/0.39 in
Crimping Range: Cu 4-70mm2
Crimping Form: Confining Pressure

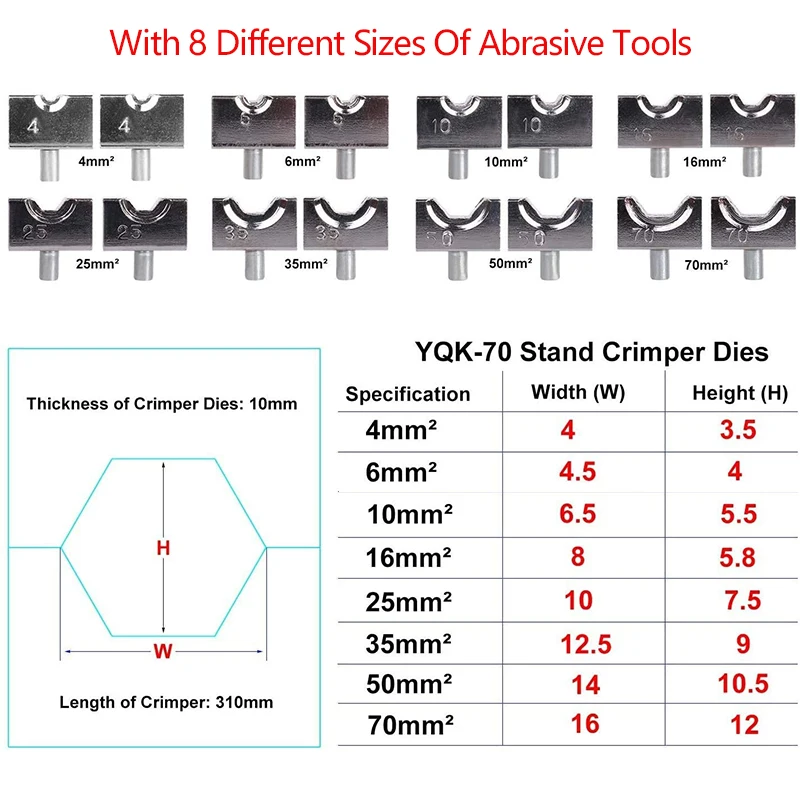

Mold Configuration: 4, 6, 10, 16, 25, 35, 50, 70mm2
Features:
1. The terminal crimping tool is suitable for DIN, AWG, JIS specifications.
2. There will be a "click" safety protection device when the high and low pressure of the fast two ends is reached.
3. One person can work at high altitude, saving time and effort.
4. The pump is designed in one piece, and the head can be rotated 180° when pressed.
Note:
1.Please allow 1-3cm error due to manual measurement. Please make sure you do not mind before you bid.
2.We have been constantly improving the effects of photography, but due to different camera and monitor parameters, lighting and other factors, it is still difficult to avoid the color difference between the real object and the photo, so please refer to the actual color.
3.The shape or color of some accessories may be improved during sale, but the functions are guaranteed to be the same. If you can't accept this, please don't buy, please understand.
